1、Multi-function for testing compressive strength of concrete. It is used to test the compressive strength of concrete by rebound method and ultrasonic-rebound method.

2、Get the compressive strength value of concrete by ultrasonic-rebound method in one instrument. it need two instrument usually, one to test sound speed in concrete, the other to test rebound value.

3、Can save test date. This is convenient for laborer data management.

4、Real USB transmission. Data can be transmit to computer for future process and analysis.

5、Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.

Technical Data

1、Permissible sound time error ：±0.1μs；

2、Sensor frequency ：50KHz；

3、Rebound kinetic energy ：2.207J；

4、Rebound springs Rigidity：785.0±40.0(N/m)；

5、Rebound bar impact length :75.0±0.3 mm；

6、Rebound value permission error：≤±1；

7、Average rebound value on Calibration anvil：80±2；

8、Temperature：-4°C～+40°C；

9、LCD screen：160×128(10×8cm)；

10、Power：6 dry cells，work more than 10 times

11、Size and： 205mmX173mmX86mm

12、Weight: 850g；

Configure

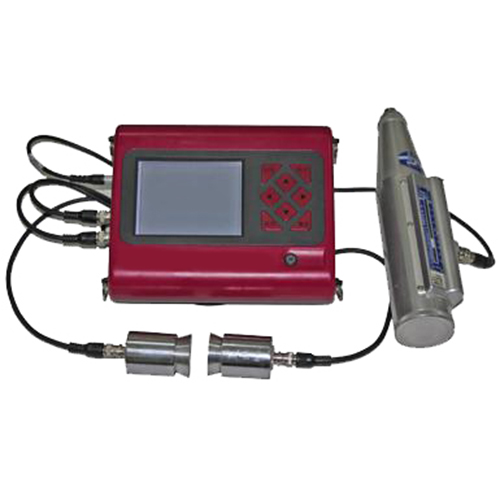

Instrument	Plane energy transducer	Rebound sensor	Signal cable

USB cable	Specification and Software CD-ROM	Battery	Box

Major interface

Parameter setting

Test interface by

ultrasonic-rebound

Test interface by

rebound-rebound

Test interface by rebound method

Software

Powerful software in windows is convenient to data process and analysis：Real USB assure transmit data to computer quickly. It also can export data to word and excel for future process, save and print data.

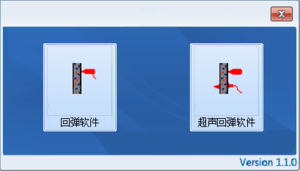

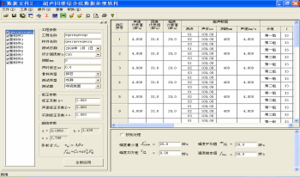

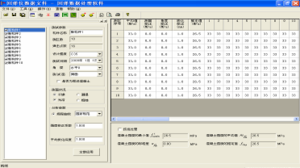

Software interface	ultrasonic-rebound software	rebound software
