Features
investigation depth could reach 180mm
Single comprehensive probe. No need to replace during test.
back-lit screen let instrument can be normal used under the condition of insufficient light
Machine software is complete .The report could be printed automatically connecting with computer
Work environment condition
No strong alternating electromagnetic field
No corrosive gas in the air.
Avoid larger vibration and impact
Avoid the LCD panel contact with sunlight directly
Product usage
Testing concrete cover thickness
Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.
Estimation bar diameter
Detection of Cable and Plumbing pipe
Technical Specification
Bar diameter application range(mm) | Φ6 - 50 |
Maximum permissible error of Bar diameter | ≤±1 |
Cover thickness measuring range |
|
The first measuring range (mm) | 6 - 90 |
The second measuring range (mm) | 7-180 |
The maximum error of cover thickness |
|
The first measuring range (mm) | The second measuring range (mm) |
|
6 - 59 | 7 - 79 | ≤±1 |
60 - 69 | 80 - 119 | ≤±2 |
70 -90 | 120 - 180 | ≤±4 |
Standard Delivery | Optional Accessory |

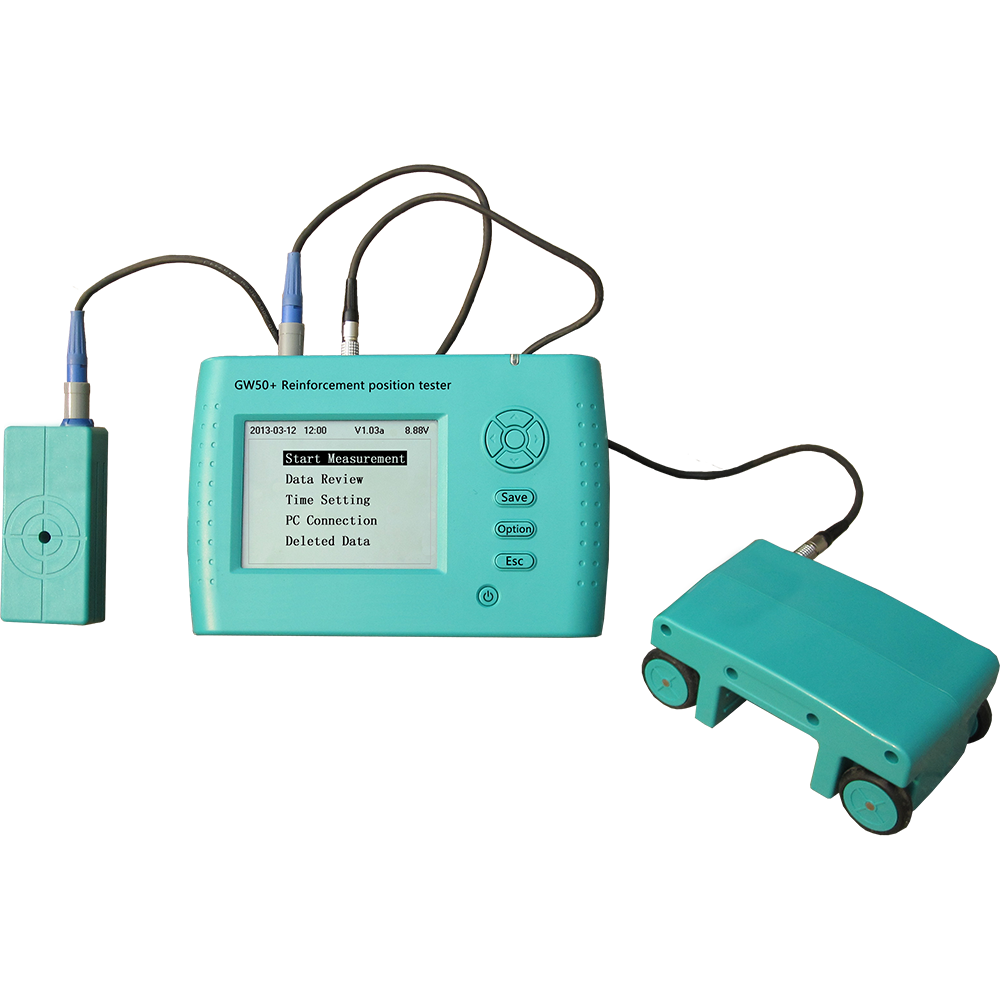

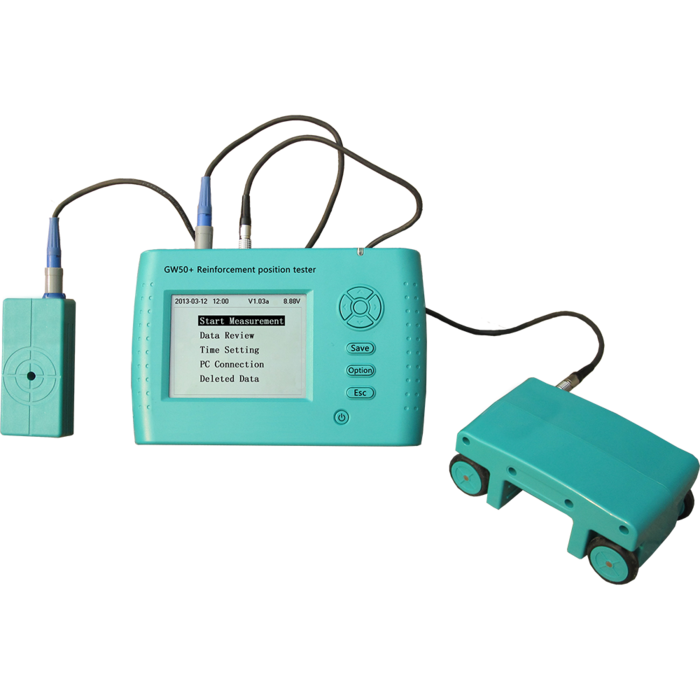

Main unit, Software USB connecting cable Probe Probe cable Manual Warranty card Carry case | 1 1 1 1 1 1 1 | Scan car Car cable |
